Linear Positioners

Written on . Posted in End of Lines Systems.

Alutec linear positioners are suited fo industrial context since their extreme reliability.
They are ideal when comes to supporting manufacturing processes which require high precision and continuous flexibility.
Different types of linear positioners are available in order to meet any customer’s need
– manual driven or motorized
– single or multiple based
– unidirectional or multidirectional motion
– single axis or two orthogonal axes

  • Linear Positioners

  • Linear Positioners

  • Linear Positioners

ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

Conveyor belt in acetal resin chain

Written on . Posted in Conveyor Systems.

Conveyor belt made in acetal resin chain: ALuflex channel 86 with a closed loop, pulling on the wheel.
The construction is completed with locking cylinders to block the pallet to allow the robots to work in several positions.
ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

Laser marking machine BancoMark

Written on . Posted in End of Lines Systems.

We consolidate the partnership with Mancini Enterprise by introducing the laser marking machine “BancoMark”.
The solid structure in Alutec aluminium profiles, combined with the lightness of the panels and the carbon fibre door allow to obtain a robust machine, and adapted to production requirements, ant aesthetically excellent.
Bankomark houses the new Keyence MD-X 2000 series laser, with a 330x330mm working area and vision system for automatic focusing over the entire working area, for position alignment and 3D surface recognition, it is suitable for marking on plastics and metals.
The machine is in line with the optical 4.0 standard.

  • Laser marking machine BancoMark

  • Laser marking machine BancoMark

ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

Sandwich belt

Written on . Posted in End of Lines Systems.

Sandwich belt

Custom constructions
Today we have finished assembling a sandwich belt with a single drive, double steel pulley and tensioners to join the two belts.
It will now move to the testing department before being shipped to the customer.
ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

Workbench with roller conveyor

Written on . Posted in Production Lines.

Workbench with roller conveyor

Knowing and understanding customer needs is at the centre of every successful business, every operator must be able to work safely, avoid moving heavy loads and be able to organise his work in a flexible and functional manner.
Our workbenches and assembly lines can be customised with the user’s comfort in mind.

  • Workbench with roller conveyor

  • Workbench with roller conveyor

  • Workbench with roller conveyor

ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

Motorised conveyor with antistatic chain

Written on . Posted in Conveyor Systems.

Motorised conveyor with antistatic chain

New solution ready for delivery, this is a motorised  conveyor with antistatic chain, made using the 86 mm channel of our ALuflex line.
The special feature of this solution is the use of black antistatic chain and guides as required by the customer’s specifications.
The system is made up of two pieces of line, which are then assembled together. The first one 3.5 m long with a 180° curve and 5° inclined side and the other 2 m long with a double line.

  • Motorised conveyor with antistatic chain

  • Motorised conveyor with antistatic chain

  • Motorised conveyor with antistatic chain

  • Motorised conveyor with antistatic chain

ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

Transporting and assembling aluminium ladders

Written on . Posted in Conveyor Systems, End of Lines Systems.

Transporting and assembling aluminium ladders

This application is dedicated to automating the process of transporting and assembling aluminium ladders.
The operator loads the pieces by hand into the specially designed cradles with rubber support on the sides and polythene on the bottom (30 in total on each side) to protect the product from any contact that could scratch it.
This automation will be integrated with the user’s final automation.
In this case ALutec designed and manufactured the handling system, and the gripper is also part of ALutec’s know-how.

All the profiles used are part of our catalogue

  • 104590 Aluminium profile 45×90 slot 8
  • 109091 Aluminium profile 90×90 hollow 8

  • Transporting and assembling aluminium ladders

  • Transporting and assembling aluminium ladders

ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

Conveyor belt for rolls

Written on . Posted in Conveyor Systems.

For a customer who designs, develops and manufactures automated production of automatic lines for the paper industry, we have developed a Conveyor belt for rolls, capable of rotating in 4 different positions and deposit the piece in the continuation of a dedicated line.

The belt was totally built with Alutec profiles (104545, 104590,103290, 104593), pneumatic parts and guides with recirculating ball bearings to guide it in rotation to guide it in rotation. The motorisation is central, the side rails are made of galvanised sheet metal. galvanised sheet metal.

  • Nastro trasportatore per rotoli

  • Nastro trasportatore per rotoli

  • Nastro trasportatore per rotoli

  • Nastro trasportatore per rotoli

  • Nastro trasportatore per rotoli

ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

PVC carpet tapes

Written on . Posted in Production Lines.

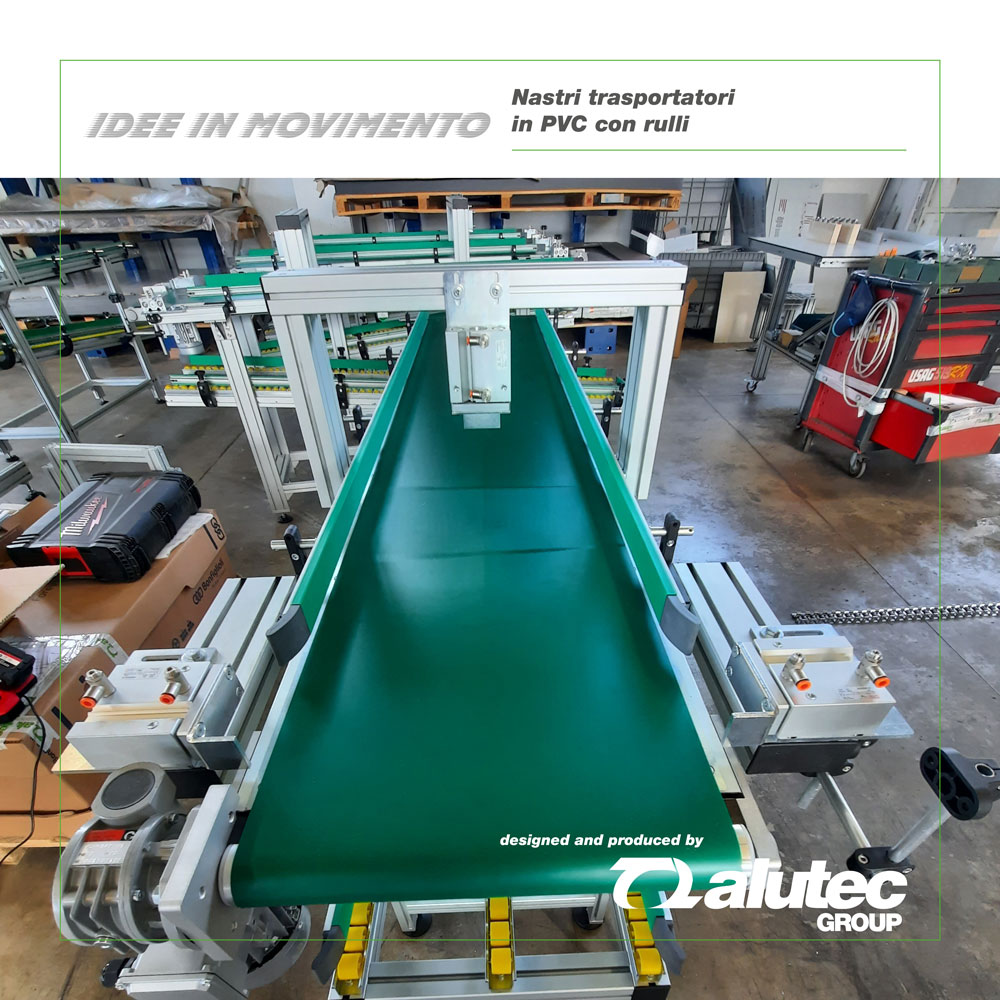

For one of our customers, we made 5 twin tapes with the upper part made of PVC belt, while the lower part is composed of idle rollers to facilitate feeding.

To automate the system, we inserted an independent belt with a pneumatic system with a pneumatic system which receives the workpiece arriving from the upper conveyor the upper belt, which, when lowered, reverses direction to move the product in the part below.

  • Linea completa con ricircolo pallet

  • Linea completa con ricircolo pallet

  • Linea completa con ricircolo pallet

  • Linea completa con ricircolo pallet

  • Linea completa con ricircolo pallet

ALUTEC GROUP DESIGN AND MANUFACTURE EVERY LINE AND EVERY PRODUCT, RESPONDING TO THE CUSTOMER NEEDS!

CONTACT US FOR MORE INFORMATION

Continue reading

PVC belts resistant to cutting and suitable for industrial handling

Written on . Posted in Conveyor Systems.

For a leading company in the packaging industry, we have produced several of the following PVC belts resistant to cutting and suitable for industrial handling.

The handling process is completed by an elevator belt finished with porters to verticalise the transport, preventing falling over on the smooth surface during the ascent phase. The various parts will be integrated with the customer’s existing line.

  • PVC belts resistant to cutting and suitable for industrial handling

  • PVC belts resistant to cutting and suitable for industrial handling

  • PVC belts resistant to cutting and suitable for industrial handling

  • PVC belts resistant to cutting and suitable for industrial handling

  • PVC belts resistant to cutting and suitable for industrial handling
